商品名称:
|

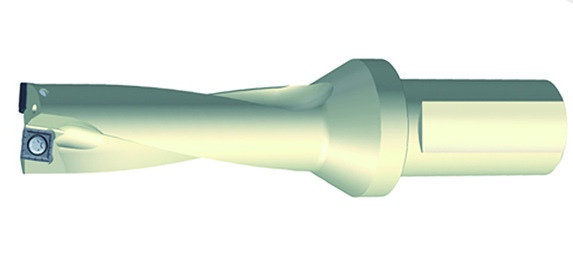

可转位钻削刀杆ZTD03-270-XP25-SP07-02株洲钻石刀具济南代理
|
型号 :
|
ZTD03-270-XP25-SP07-02
|
产品详情
Product details
可转位钻削刀杆ZTD03-270-XP25-SP07-02株洲钻石刀具济南代理
联系人：党小萌 Tel:15725101031(同微信） QQ：2851163913

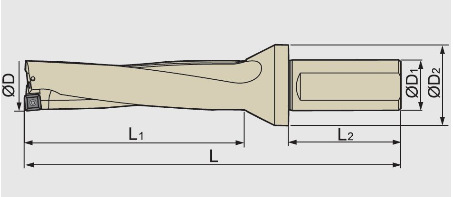

刀具参数
| 型号 | 库存标识 | ØD | ØD1 | ØD2 | L1 | L2 | L |
| ZTD03-130-XP20-SP05-02 | ▲ | 13 | 20 | 25 | 44 | 50 | 111 |
| ZTD03-140-XP20-SP05-02 | ▲ | 14 | 20 | 25 | 47 | 50 | 114 |
| ZTD03-150-XP20-SP05-02 | ▲ | 15 | 20 | 25 | 50 | 50 | 117 |
| ZTD03-160-XP20-SP05-02 | ▲ | 16 | 20 | 25 | 53 | 50 | 120 |
| ZTD03-170-XP25-SP06-02 | ▲ | 17 | 25 | 32 | 56 | 56 | 135 |
| ZTD03-180-XP25-SP06-02 | ▲ | 18 | 25 | 32 | 59 | 56 | 138 |
| ZTD03-190-XP25-SP06-02 | ▲ | 19 | 25 | 32 | 62 | 56 | 140 |
| ZTD03-200-XP25-SP06-02 | ▲ | 20 | 25 | 32 | 65 | 56 | 143 |
| ZTD03-210-XP25-SP06-02 | ▲ | 21 | 25 | 32 | 68 | 56 | 146 |
| ZTD03-220-XP25-SP07-02 | ▲ | 22 | 25 | 32 | 72 | 56 | 150 |
| ZTD03-230-XP25-SP07-02 | ▲ | 23 | 25 | 32 | 74 | 56 | 153 |
| ZTD03-240-XP25-SP07-02 | ▲ | 24 | 25 | 32 | 78 | 56 | 156 |
| ZTD03-250-XP25-SP07-02 | ▲ | 25 | 25 | 32 | 81 | 56 | 159 |
| ZTD03-260-XP25-SP07-02 | ▲ | 26 | 25 | 32 | 83 | 56 | 162 |
| ZTD03-270-XP25-SP07-02 | ▲ | 27 | 25 | 32 | 86 | 56 | 165 |
| ZTD03-280-XP32-SP09-02 | ▲ | 28 | 32 | 37 | 90 | 60 | 175 |
| ZTD03-290-XP32-SP09-02 | ▲ | 29 | 32 | 37 | 93 | 60 | 178 |
| ZTD03-300-XP32-SP09-02 | ▲ | 30 | 32 | 37 | 95 | 60 | 181 |
| ZTD03-310-XP32-SP09-02 | ▲ | 31 | 32 | 37 | 98 | 60 | 184 |
| ZTD03-320-XP32-SP09-02 | ▲ | 32 | 32 | 37 | 101 | 60 | 187 |
| ZTD03-330-XP32-SP09-02 | ▲ | 33 | 32 | 37 | 104 | 60 | 190 |
| ZTD03-340-XP40-SP11-02 | ▲ | 34 | 40 | 47 | 108 | 70 | 208 |
| ZTD03-350-XP40-SP11-02 | ▲ | 35 | 40 | 47 | 111 | 70 | 211 |
| ZTD03-360-XP40-SP11-02 | ▲ | 36 | 40 | 47 | 114 | 70 | 214 |
| ZTD03-370-XP40-SP11-02 | ▲ | 37 | 40 | 47 | 117 | 70 | 217 |
| ZTD03-380-XP40-SP11-02 | ▲ | 38 | 40 | 47 | 119 | 70 | 220 |
| ZTD03-390-XP40-SP11-02 | ▲ | 39 | 40 | 47 | 122 | 70 | 223 |
| ZTD03-400-XP40-SP11-02 | ▲ | 40 | 40 | 47 | 126 | 70 | 226 |
| ZTD03-410-XP40-SP11-02 | ▲ | 41 | 40 | 47 | 128 | 70 | 229 |
| ZTD03-420-XP40-SP14-02 | △ | 42 | 40 | 52 | 132 | 70 | 242 |
| ZTD03-430-XP40-SP14-02 | △ | 43 | 40 | 52 | 135 | 70 | 245 |
| ZTD03-440-XP40-SP14-02 | △ | 44 | 40 | 52 | 138 | 70 | 248 |
| ZTD03-450-XP40-SP14-02 | △ | 45 | 40 | 52 | 141 | 70 | 251 |
| ZTD03-460-XP40-SP14-02 | △ | 46 | 40 | 52 | 144 | 70 | 254 |
| ZTD03-470-XP40-SP14-02 | △ | 47 | 40 | 52 | 147 | 70 | 257 |
| ZTD03-480-XP40-SP14-02 | △ | 48 | 40 | 52 | 149 | 70 | 260 |
| ZTD03-490-XP40-SP14-02 | △ | 49 | 40 | 52 | 152 | 70 | 263 |
| ZTD03-500-XP40-SP14-02 | △ | 50 | 40 | 52 | 155 | 70 | 266 |
